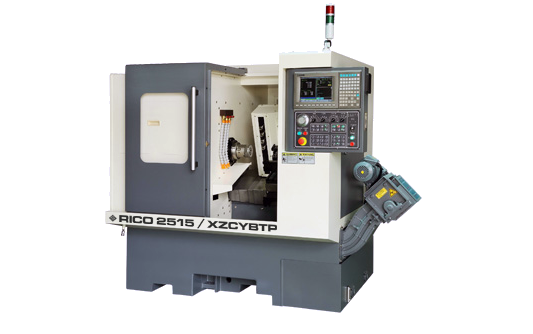

| Tokarskie centrum obróbcze RICO ADV 2515 / ZXCYBTP |
| MODEL |
RICO ADV 2515 |
| Swing over cross bed(mm) |
300 |
| Standard manufacturing DIA.(mm) |
140 |
| Max manufacturing DIA.(mm) |
250 |
| Max manufacturing length(mm) |
150 |
| Hydraulic chuck(inch) |
6" |
| Bore of spindle(mm) |
45 |
| Max. bar feeding DIA.(mm) |
42 |
| X-axis travel(mm) |
350 |
| Z-axis travel(mm) |
250 |
| X rapid travel speed(m/min) |
20 |
| Z rapid travel speed(m/min) |
20 |
| Spindle rotation speed(rpm) |
50-6000 |
| O.D. turning tool size |
20 |
| I.D. turning tool size |
20 |
| Coolant tank volume(L) |
110 |
| Coolant pump for spindle(HP) |
1/4 |
| Collet chuck |
C44/173E |
| Inverter motor |
5 |
| X/Z-axis servo motor(KW) |
1 |
| Hydraulic turret(POS.) |
8 |
| Machine net weight(Kgs) |
2350 |
| Machine size L×M×H(mm) |
1722×1473×1785 |

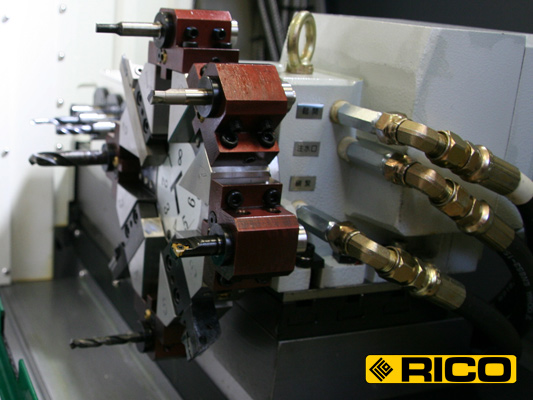

| Dane techniczne tokarki CNC RICO ADV 2515 / ZXCYBTP |
| MODEL |
RICO ADV 2515 |
| Direct drive spindle & direct connection collet chuck |
- |
| A2-4 spindle |
- |
| A2-5 spindle |
standard |
| 161E collet |
- |
| 163E collet |
- |
| 3-jaw Hydraulic Chuck or Collet Chuck (choose one) |
standard |
| Soft Jaw or 173E collet (choose one) |
standard |
| Lighting device 24V/50W |
standard |
| Tools and tool box |
standard |
| Coolant system and chip basket tank |
standard |
| Coolant Pump 1/4HP |
standard |
| Powerful coolant pump 1HP |
option |
| Base leveling block |
standard |
| Tool holder for inner hole (ID 20) |
standard |
| Tool base for inner hole (ID 20) |
option |
| No-material alarm indicating lamp |
standard |
| Tool holder bush (ID 6,8,10,12,16 / OD 20) |
standard |
| Gang type tool plate |
standard |
| Auto lubrication system |
standard |
| Upper tool holder 20 /Lower tool holder 20 /Twin tool holder 20 |
standard |
| Tool spacer (up .down) |
option |
| Voltage stabilizer |
option |
| Transformer |
option |
| Constant voltage transformer (Voltage stabilizer+Transformer) |
option |
| Finished-parts collecting device |
option |
| Track type electrical chip conveyer |
option |
| Oil mist recycle device |
option |
| Closed air cooler |
option |
| 8-Position hydraulic turret |
option |
| Bar-puller (Autolink) |
option |
| CE specifications |
option |
| Finished-parts collecting device |
option |
| Finished-parts collecting device and conveyor belt |
option |
| Y-axis side milling device(4-tool)ER-16 |
option |
| Y-axis side milling device(4-tool)ER-20 |
option |
| Three shaft drilling & tapping device(B-axis) |
option |
| C-axis function with disk brake system |
option |
| Single shaft side milling device-Top(ER-25) |
option |
| Single shaft Vertical type milling device(ER-20) |
option |
| Single shaft side milling device-Below(ER-20) |
option |
| Oil skimmer |
option |
| Syntec 900T controller |
standard |
| Syntec 900T All in one controller |
option |
| Fanuc Oi Mate TC controller |
option |
|
|
|
|
|
|
